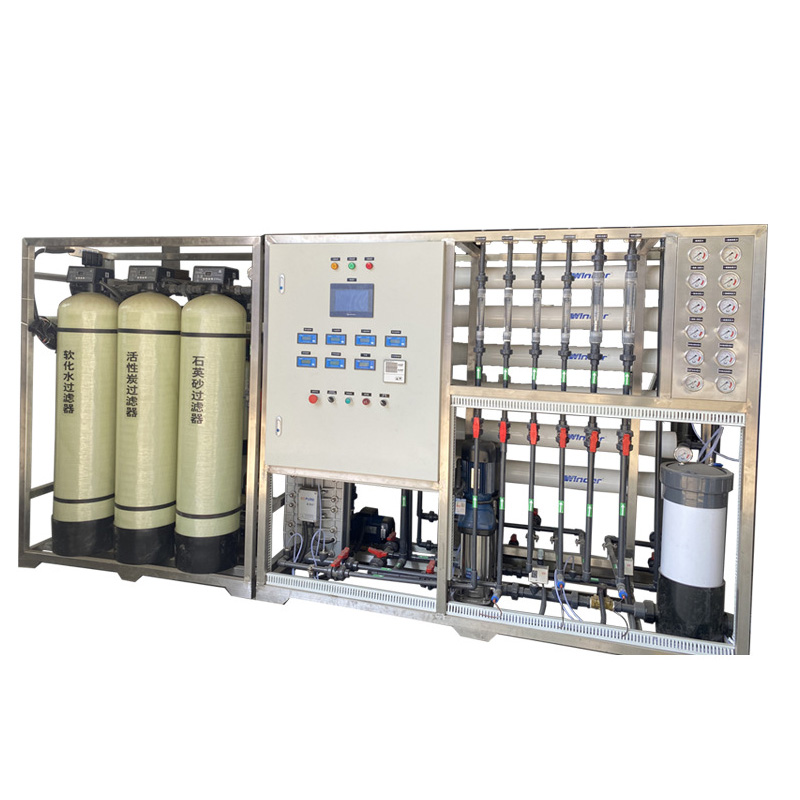

Ultrapure water equipment

Ultrapure water equipment introduction :EDI is an innovative filter equipment in water treatment technology. This technology uses the electric regeneration ion exchange desalination process to replace the traditional mixed ion exchange desalination process DI. High desalination effect is a
Tags:
+86 17737144966
Share us:

Ultrapure water equipment introduction :


EDI is an innovative filter equipment in water treatment technology. This technology uses the electric regeneration ion exchange desalination process to replace the traditional mixed ion exchange desalination process DI. High desalination effect is achieved through ion exchange resin and selective ion membrane, and the combined process combined with reverse osmosis makes the water quality of the product water up to 10-15M high-standard product water.

EDI adopts standard component design and can be combined into any system according to requirements, and the water production can reach 1-450m3/h


The working principle of ultrapure water equipment:


The raw water is supplied into the EDI system, and the main part flows into the resin/inner membrane part, while the other part flows along the outside of the membrane plate to wash away the ions that permeate out of the membrane.

The resin retains dissolved ions in water.

Under the action of the electrode, the trapped ions move toward the positive electrode, and the cation moves toward the negative electrode.

The cations pass through the cationic membrane and exit the resin/membrane.

Anions pass through the anion membrane and exit the resin/membrane.

The concentrated ions are discharged from the waste water flow path.



The filter media of ultrapure water equipment mainly include:


Different water quality and water sources require different filter media. At present, the most common filter media in the market are: anthracite filter media, activated carbon filter media, manganese sand filter media, and garnet filter media, etc.



Specifications of our ultrapure water equipment:


model

EDI-6

EDI-11

EDI-23

EDI-34

EDI-45

EDI-68

6m3/h

11m3/h

23m3/h

34m3/h

45m3/h

68m3/h

Membrane groupSTACK

number

1-2

2-4

4-8

6-12

8-16

12-24

Pipe diameter

1.5”

2”

3”

4”

4”

6”

Piping material

SCH#80UPVCTube

SCH#80UPVCTube

SCH#80UPVCTube

SCH#80UPVCTube

SCH#80UPVCTube

SCH#80UPVCTube

Dimensions (cm)

198W×107D×183H

137W×234D×213H

315W×151D×213H

174W×404D×213H

183W×251D×334H

213W×259D×425H

Product water quality

water resistance

≥10MΩ.cm

≥15MΩ.cm

Recovery rate

90-95%

Water intake requirements

hardness

1mg/L as CacO3

Si

0.5mg/L

temperature

5-43℃

water inlet pressure

30-100PSI
